SHAWTY S0023 1D/2D QR Scanner USB , auto-detect. Supermarkets, bookstores, warehouses & libraries

FUNCTION

1. Automatic infrared detection: The barcode reader is specially equipped with infrared induction activation. The barcode reader supports automatic detection and scanning, easily identifying 1D/2D codes. The barcode reader is equipped with red and blue indicator lights.

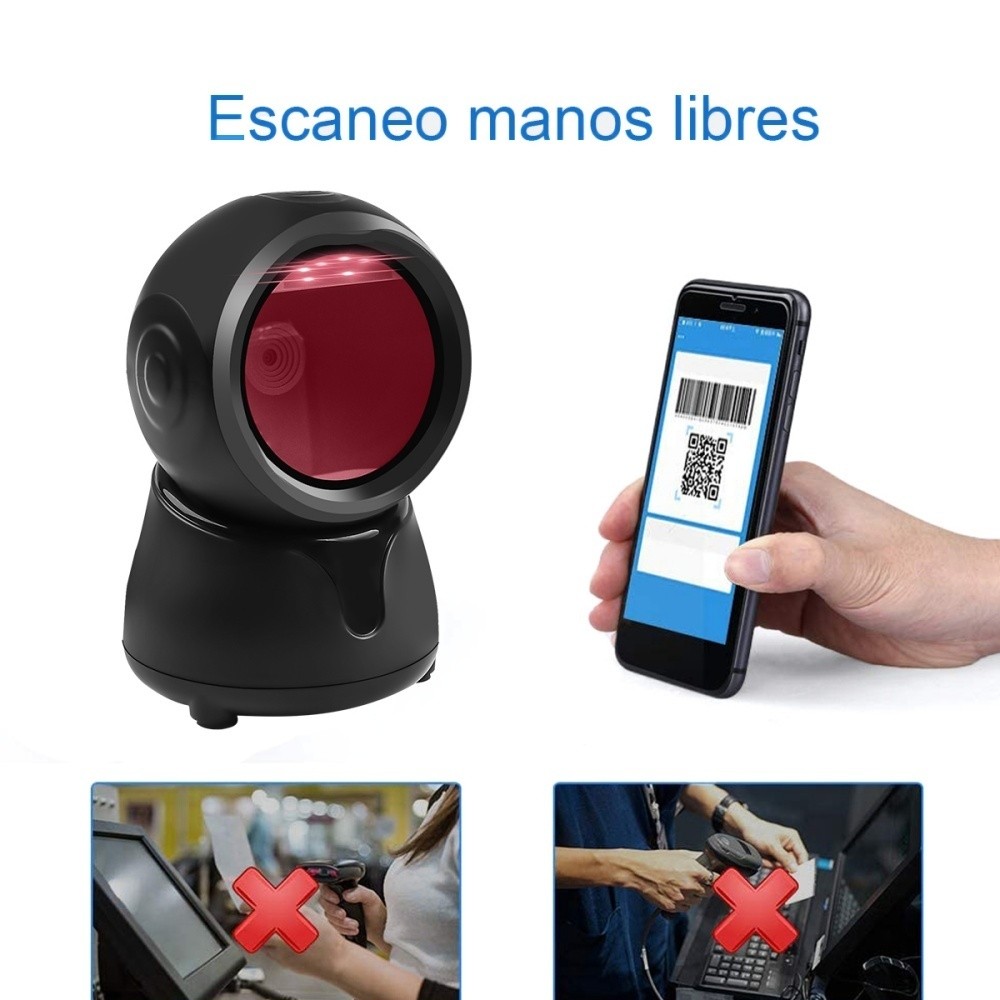

2. Hands-free barcode reader: The barcode reader can be placed directly on the desk, the base has four fixed corners without the need for a handheld scanner. The cashier can use both hands when holding heavy objects, and the barcode reader is also very convenient for scanning codes.

3. Greater decoding capacity: The barcode reader adopts optical CCD image scanning technology, and the barcode reader supports screen scanning. The barcode reader can easily scan damaged barcodes, distorted barcodes, colored barcodes, and reflective barcodes.

4. One-dimensional and two-dimensional screen code scanning: The barcode reader can decode at high speed and easily, and is common for most one-dimensional and two-dimensional codes. The barcode reader is suitable for most one-dimensional and two-dimensional barcodes on paper and film, mobile phones, tablets, and other screens.

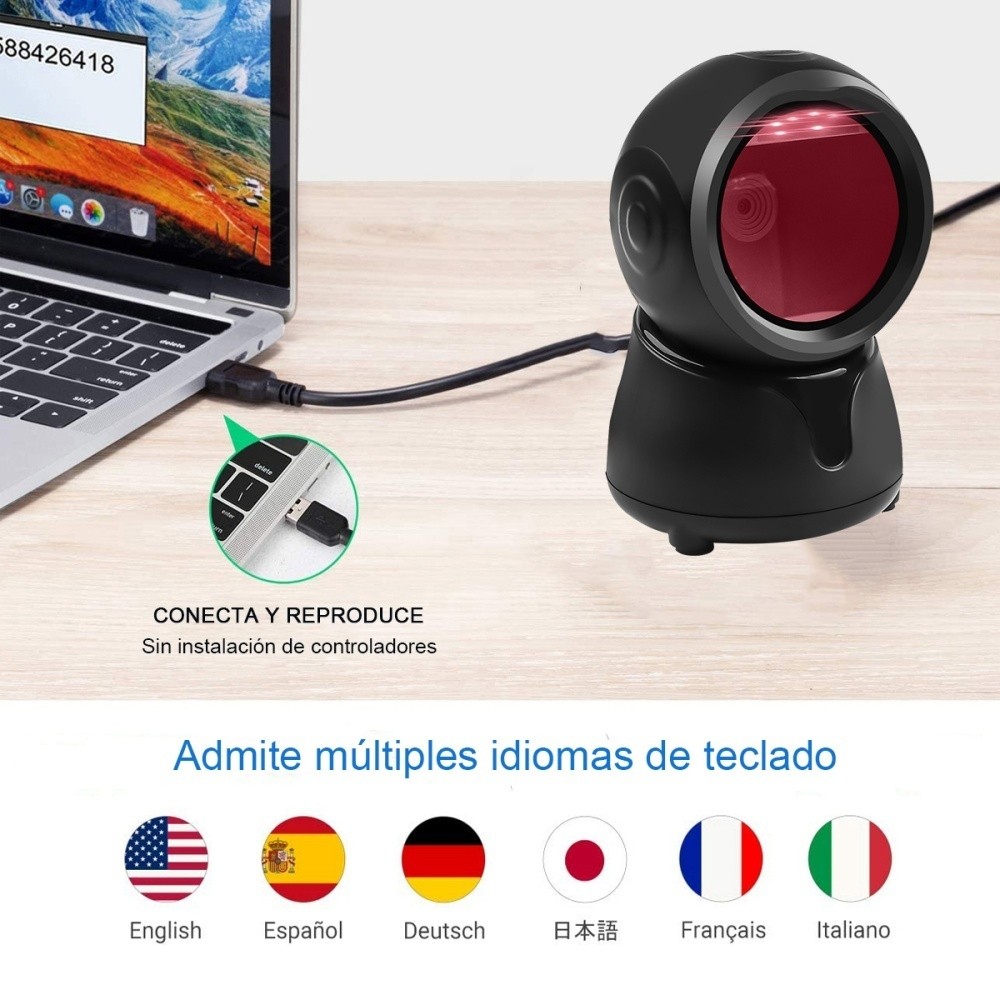

5. Easy to install and widely used: Barcode readers do not need to install drivers, software, or applications. Barcode readers support direct connection to the device via a USB cable. Barcode readers are widely used in supermarkets, warehouses, libraries, bookstores, healthcare, and other fields for document management, inventory tracking, etc.

SPECIFICATION

Sensor: 640×480 CMOS

Illumination: Red LED

Reading accuracy: >=4 mil

Reading depth of field

Code 39: 40mm-90mm

EAN-13: 40mm-310mm

QR code: 25mm-240mm

Marix data: 50mm-90mm

PDF 417: 30mm-130mm

Scanning angle: tilt 55 degrees, yaw 55 degrees, rotation 360 degrees

Field of view: horizontal 53 degrees, vertical 40 degrees

Mechanical/electrical parameters

Communication interface: TTL-232, USB (HID-KBW, virtual serial port)

Reading indicator: LED indicator and horn sound indicator (provide external interface)

Working humidity: 5%-95% (non-condensing)

Protection class: IP42 (drops and falls from 1.5 meters)

FEATURE

Scanning capacity

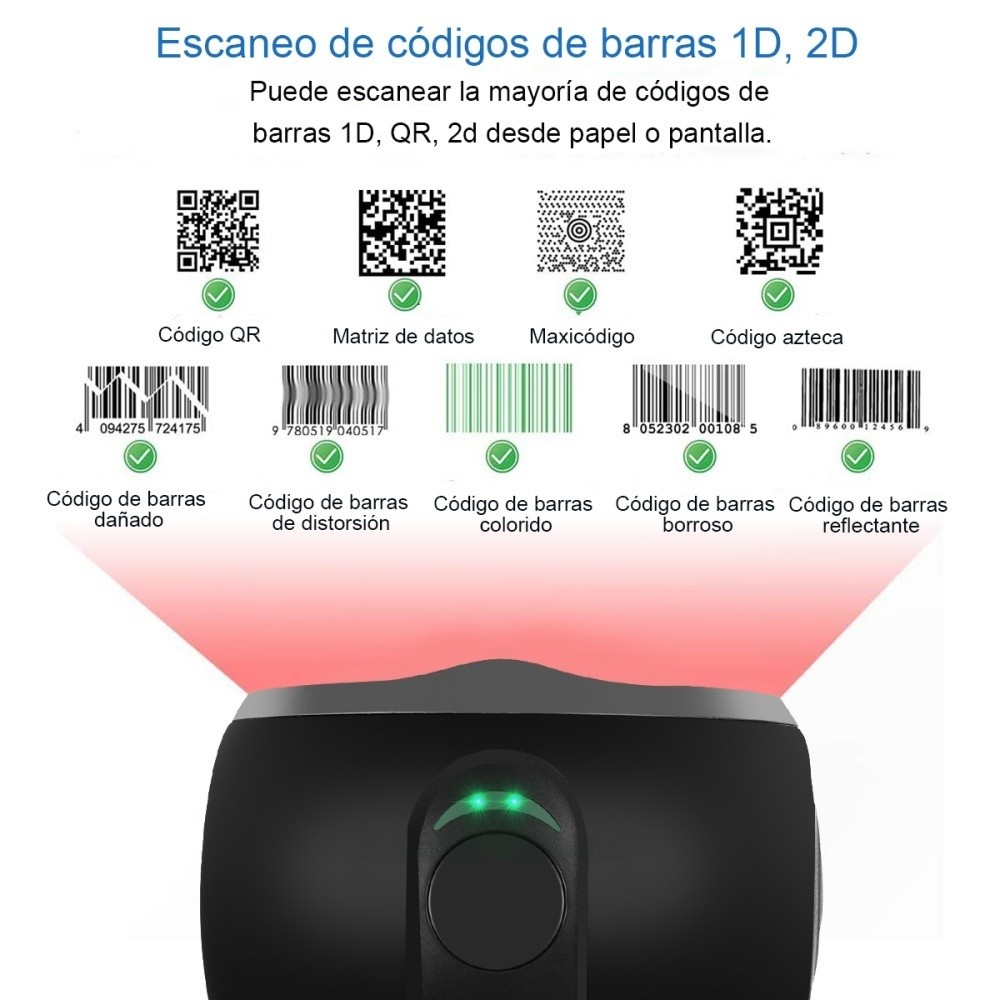

2D: QR code, Data Matrix, PDF417, Aztec, Maxicode, Hanxin

1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar (Codabar Code), Interleaved 2 of 5, ITF-6, ITF-14, ISBN (book number), ISSN (periodical number), GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5

2. High-speed image acquisition and decoding.

3. Plug and play, no need to install any drivers, software, or applications.

4. Can read electronic displays.

5. Can read damaged barcodes, distorted barcodes, colored barcodes, and reflective barcodes, etc.

6. With infrared induction trigger, supports automatic infrared detection scanning.

Seller warranty: 12 months
