Shawty S0104 HVLP Spray Gun – 1.4/1.7/2.0mm Nozzles, 600CC Canister, 1/4" Air Connection

High atomization gravity gun

The HVLP spray gun adopts HVLP technology and compressed air connection, alloy body, 600 ml spray container, 3 stainless steel nozzles: 1.4 mm, 1.7 mm, 2.0 mm, industrial spray gun, fine spraying, save time and materials, to achieve a uniform and meticulous spraying effect. Applicable to all kinds of water-based coatings, oil-based coatings, preservatives, etc.

Note: This pneumatic spray gun requires an air compressor to operate.

Features

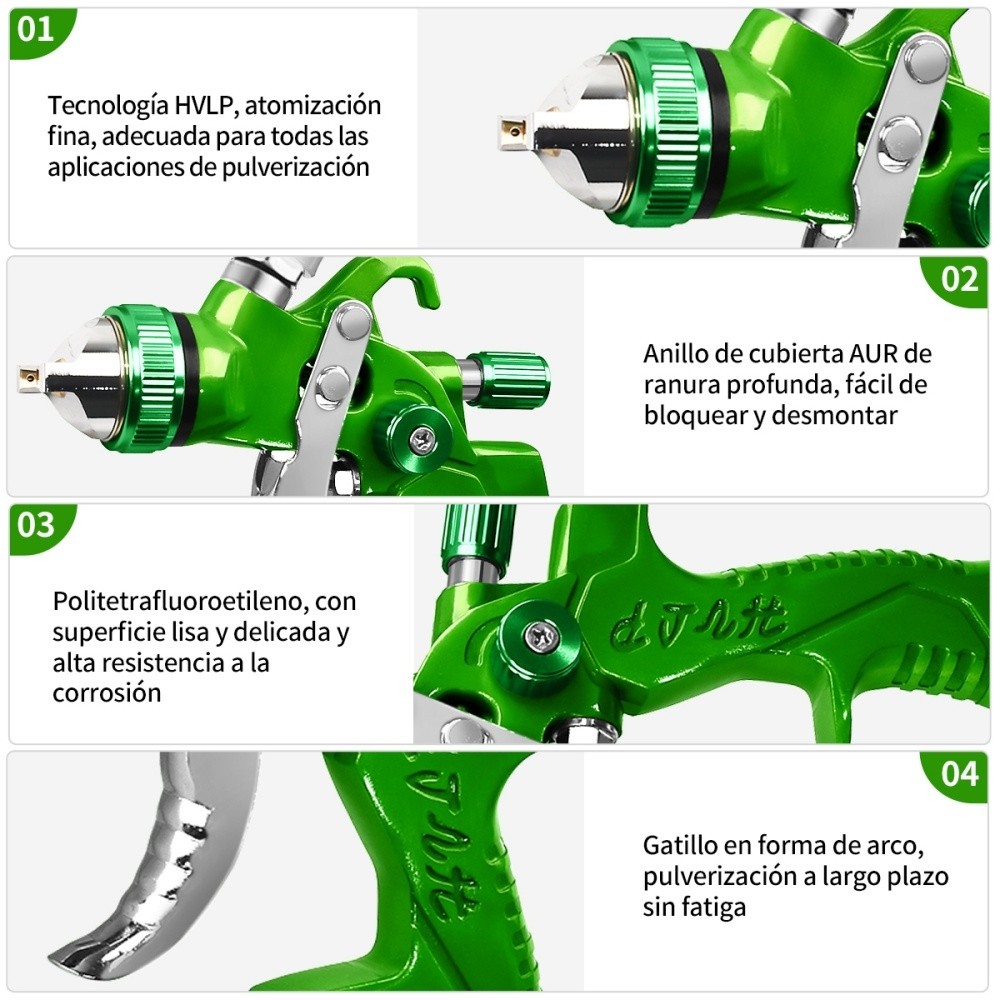

1. High-quality materials: high-quality full-flow copper spray gun, metal reel, better atomization effect. The spray gun needle tip undergoes special treatment, resulting in better sealing performance and durability.

2. Easy to adjust: Rotating spray cover, you can freely adjust the angle, adjustable spray mode, air pressure, and fluid control valve to achieve precise surface treatment.

3. Large container: Strong plastic bottle, 600 ml capacity, can hold a large amount of liquid, suitable for long-term continuous work, no frequent refilling.

4. Reasonable design: The body consists of ergonomic non-slip handles and triggers that fit the shape of the Mexican palm, are comfortable to hold, and the hooks are easy to hang and store. All parts of the machine are detachable for easy disassembly and cleaning.

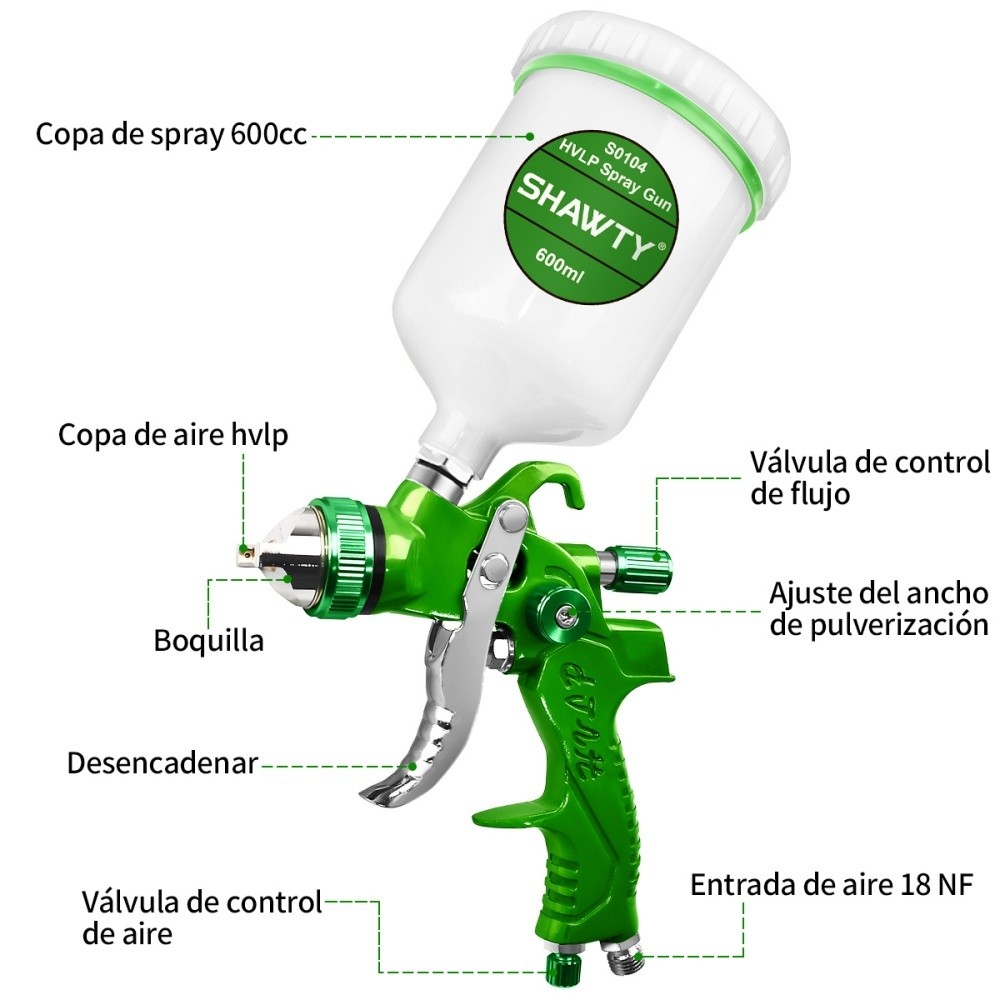

5. Flow control valve: The spray gun is equipped with 2 control valves, one can adjust the flow, the other can adjust the spray width.

6. Wide range of applications: HVLP spray gun, high efficiency, high precision, better than other spray guns, suitable for all water-soluble dispersants and latex paint, suitable for water-soluble and solvent-containing paint, enamel, wood preservatives, oil, suitable for interior walls, ceilings, automobiles, furniture, paint, fences, etc.

Tank capacity: 600ML

Spray capacity: 200ML/min

Spray mist diameter: 240 mm

Spray hole diameter: 1.4 / 1.7 / 2.0mm

Effective spray distance: 150-240 mm

Air consumption: 2700L/min

Working pressure: 0.34-0.48Mpa

Size: 210 * 135 * 132 mm

Applicable scope: furniture, interior decoration, automobile, boat.

Air connection size: 1/4

Package list:

1 * HVLP airbrush gun

3 * Nozzle (1.4mm 1.7mm 2.0mm)

3 * Needle

3 * Member

1 * Filter

1 * Coupler

1 * 600ml cup

1 * Wrench

1 * Brush

1 * Instruction manual

Airbrush operation

1. Firmly install the paint can, container assembly, and air hose on the spray gun.

2. The air pressure used varies depending on the viscosity of the coating and its nature, but generally use 0.25-0.4Mpa for spraying.

3. Spray distance 15-20 cm. If the spray distance is too close or too far, or if the spray gun is moved in an arc to spray paint, the thickness of the paint film will not be beautiful.

When you want to achieve the desired spray pattern, spray amount, and degree of atomization, adjust the spray pattern adjustment knob, air adjustment knob, and paint adjustment knob.

1.Spray pattern adjustment

A large spray pattern can be obtained when the spray pattern adjustment knob is turned counterclockwise.

2.Paint spray adjustment

The paint adjustment knob, when turned clockwise, can reduce the amount of paint spray, and when turned counterclockwise, can increase the amount of paint spray. If the paint adjustment knob is turned clockwise all the way, only air will be expelled.

3. Air volume adjustment.

Turn the air adjustment knob clockwise to lower the air volume and counterclockwise to adjust the air volume.
