SHAWTY S0034GS 12-Line Green Self-Leveling Laser Horizontal/Vertical, 2 Batteries + Remote

FUNCTION

Laser window

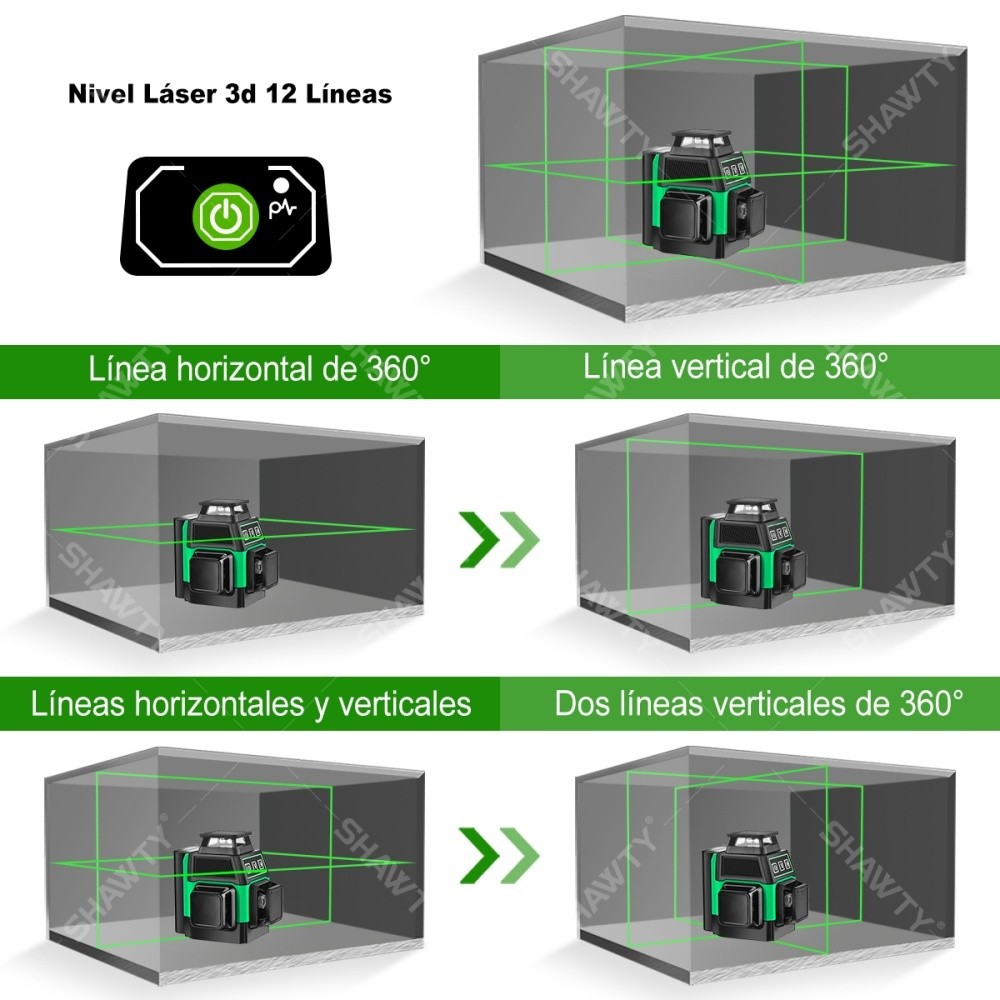

12-line laser level uses optical glass with good light transmission, clear laser, 360-degree (3D) projection of ultra-bright green laser beam, clearly visible during the day, very suitable for indoor and outdoor work.

+/-4 degree self-leveling

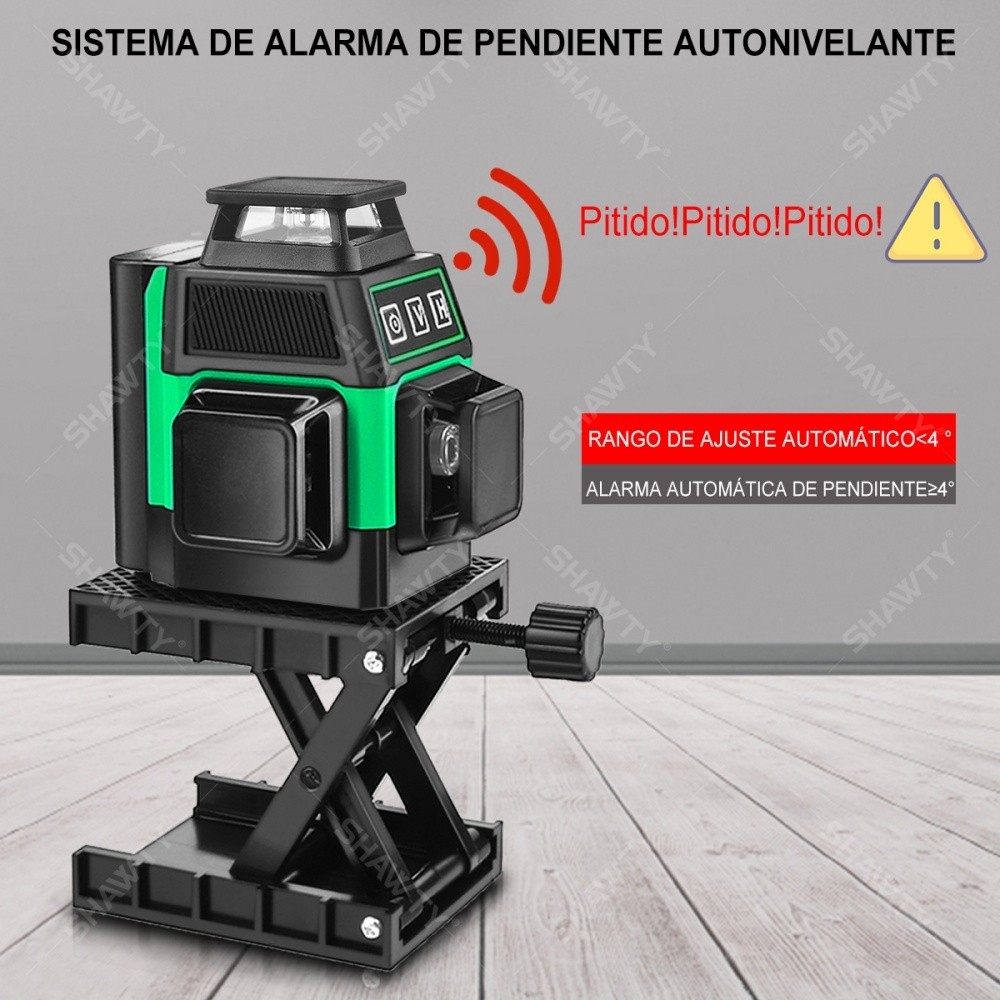

12-line laser level has self-check and calibration, +/- 4 degree self-leveling, but if the angle exceeds 4 degrees, the alarm beeps and the laser light continues to flash to remind you to reset on a flat surface.

Easy to operate

The 12-line laser level allows you to switch modes between vertical, horizontal, and cross-shaped using the touch control or remote control. The 12-line laser level also comes with a lifting platform and is designed with a 1/4 mounting hole for mounting on a tripod. (Tripod not included)

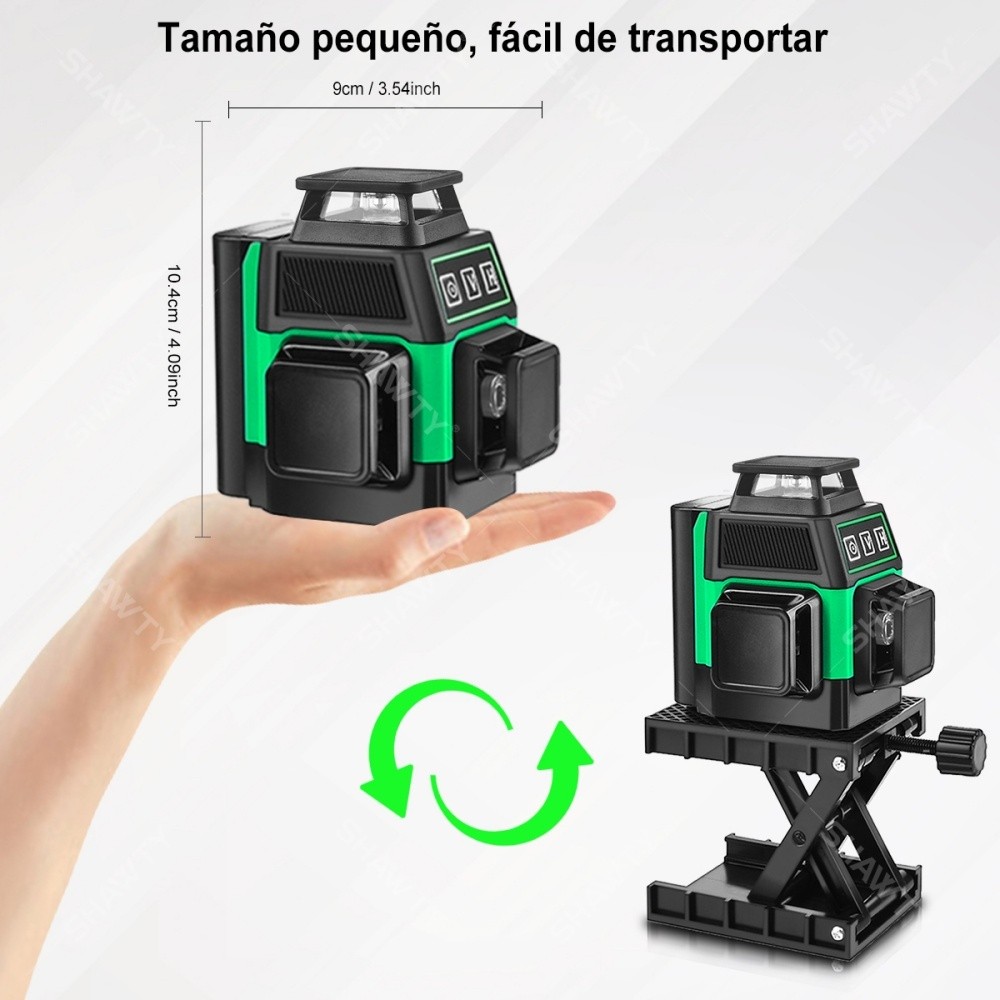

Easy to carry

The 12-line laser level comes with a storage bag (23 cm * 20 cm * 10 cm) with internal foam, which is small, lightweight, and portable, and easy to carry for installing the device to provide good protection and convenient transportation.

Wide range of applications

The 12-line laser level is IP54 waterproof and dustproof, tough enough to work in harsh environments. The 12-line laser level is an indispensable tool for tiling, installing cabinets, framing doors/windows/wooden stairs, hanging pictures/mirrors, building construction, interior decoration, DIY projects, etc.

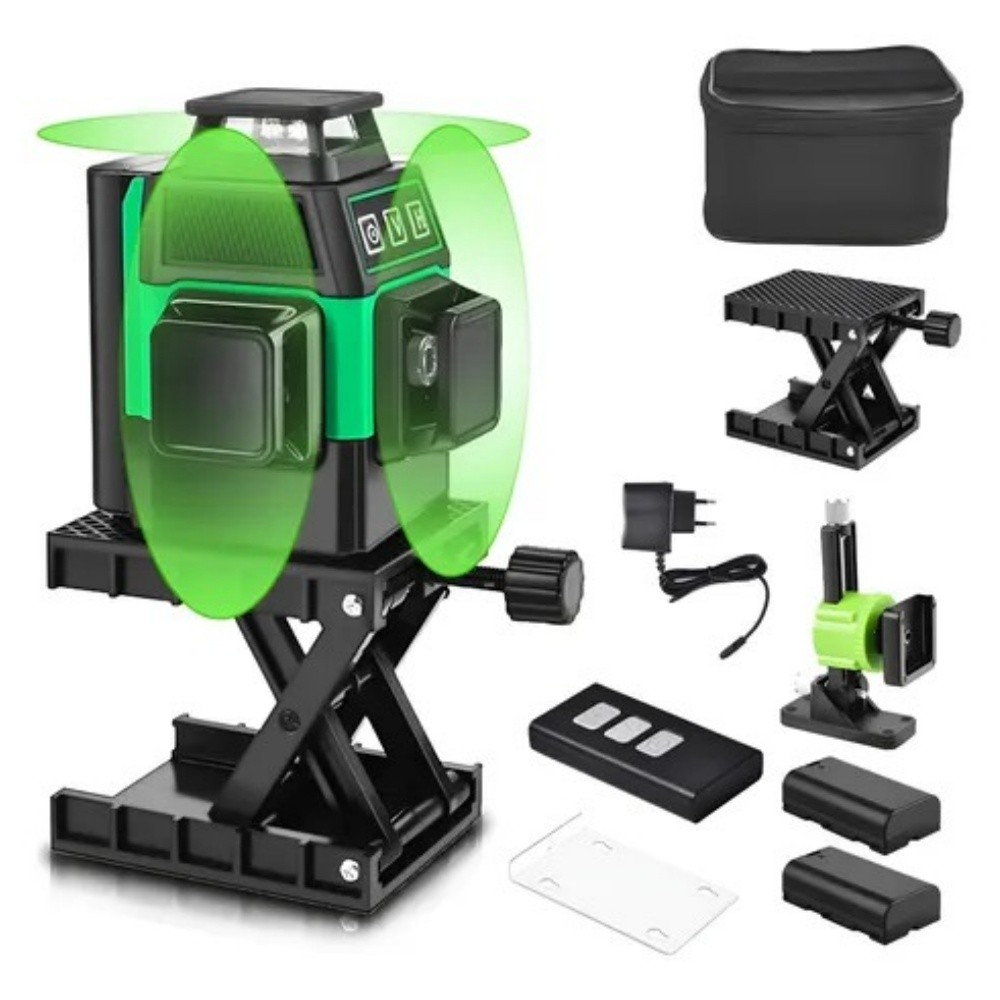

PRODUCT LIST

1 x Charger

1 x Remote control

1 x Iron plate

1 x Lifting platform

1 x Wall mount bracket

1 x 12-line 3D laser level

1 x Adjuster (1/4 inch screw size)

2 x Batteries

SPECIFICATION

Type: 12 Lines

Beam Radius: 360 degrees × 3 (3D)

Beam Color: Green

General Self-Leveling Range: +/- 4 degrees

Tripod Connector Hole: 1/4 inch

Laser Diode: 520/505nm

Battery voltage: 4.2 V

OPERATING MANUAL

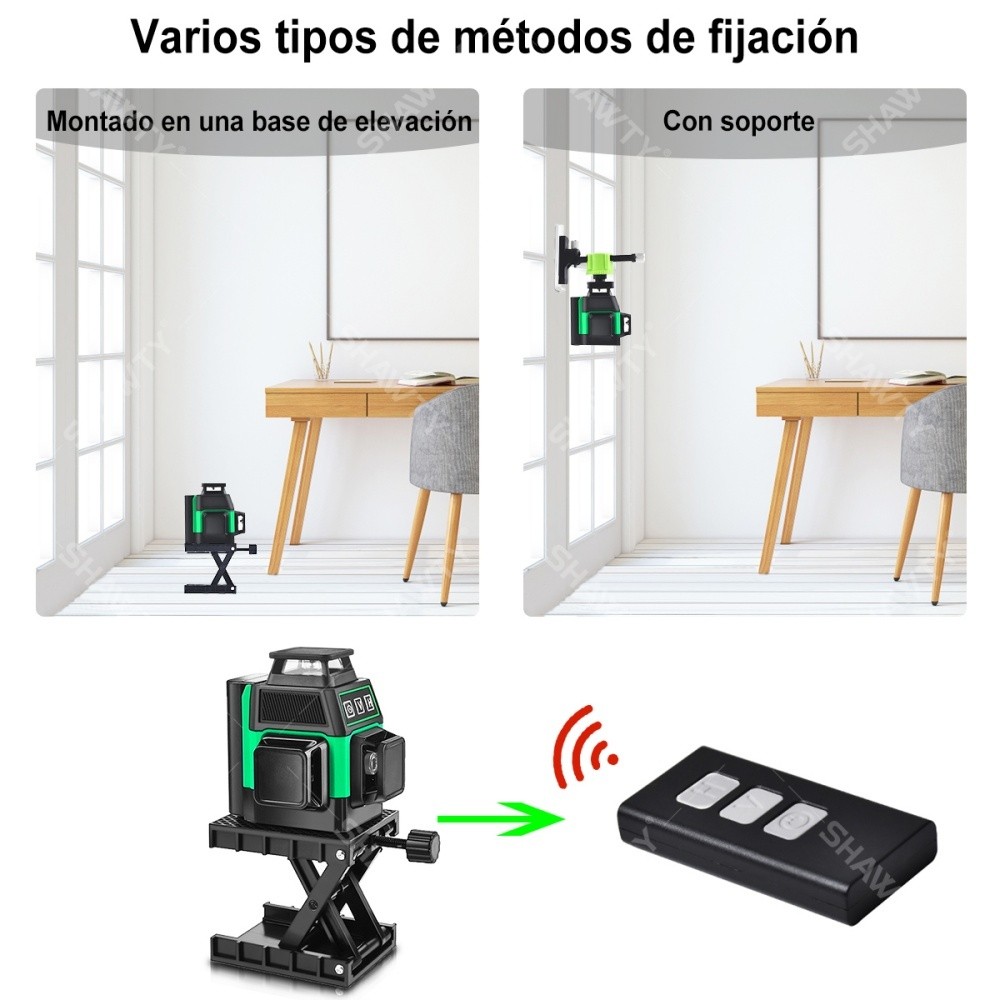

1. Positioning the instrument

a) It can be placed directly on the horizontal platform (if the laser line flashes with a buzzer, the device has exceeded the leveling range and must be adjusted to level it)

b) The thread at the bottom of the universal instrument is connected to the tripod

c) Easily tap the wall through the upper wall bracket

d) Adjust the high and low horizontal lines through the lifting platform

2. Power on/off

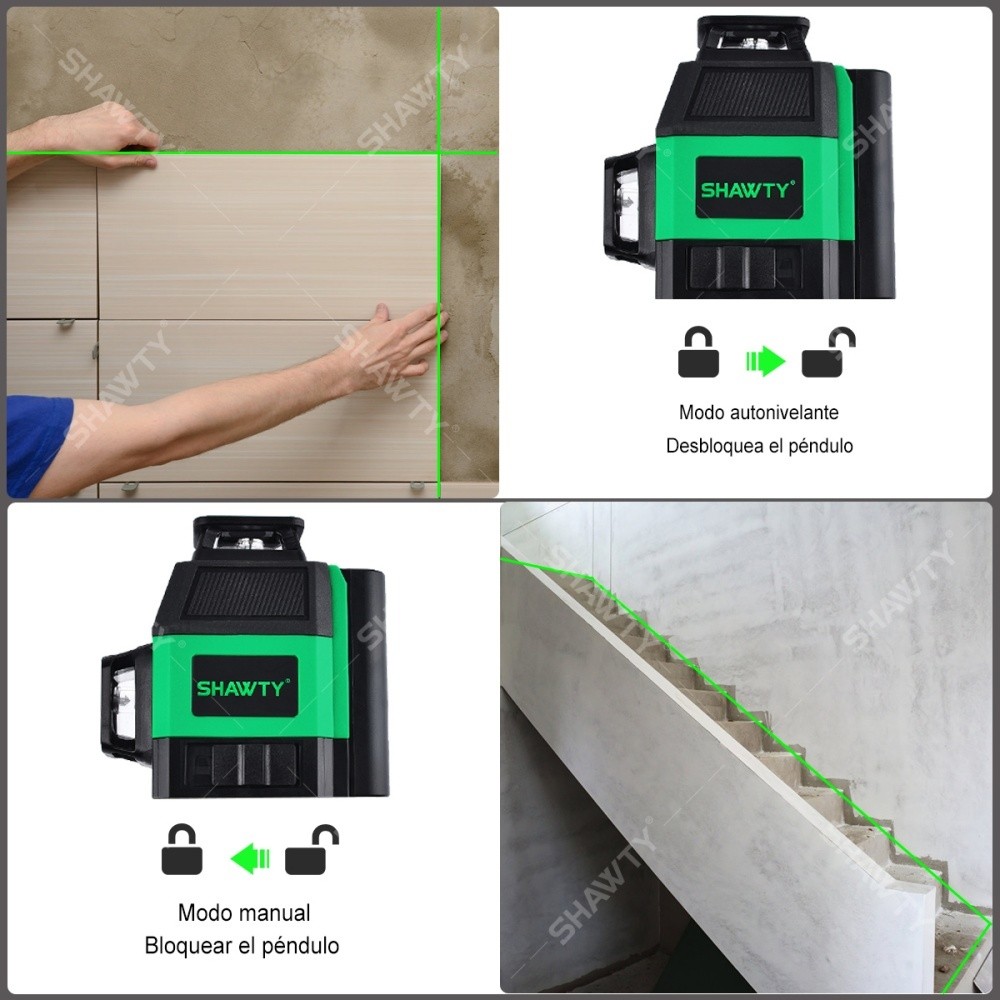

The lock is activated, the instrument is on, and the power indicator is on.

The lock is closed, the instrument is off, and the power indicator is off.

The lock is closed and the instrument is on, you can use the slash bar function.

NOTE

1. Do not allow moisture to enter the instrument and do not allow direct sunlight to shine on the instrument.

2. Instruments should not be exposed to extreme weather conditions, nor should they be placed in locations where the ambient temperature difference is considerable.

3. Avoid strong impacts on the measuring instrument; do not drop the instrument on the ground. If the measuring instrument ever fails due to a strong external impact, the measuring accuracy of the instrument must be verified before use.

4. The instrument must be turned off before moving it. Rotating parts will lock after shutdown; otherwise, rotating parts may be damaged due to strong vibration.
