SHAWTY S0085D 400/800KG Electric Hoist - 30M Lift, Remote, Emergency Stop, Dual Cable Mode

The SHAWTY electric hoist has a lifting capacity of up to 800 kg and is suitable for lifting, hanging, loading, and unloading construction materials, timber, and other heavy objects. It can be operated remotely via a wired remote control, allowing the user to operate the hoist from a safe distance.

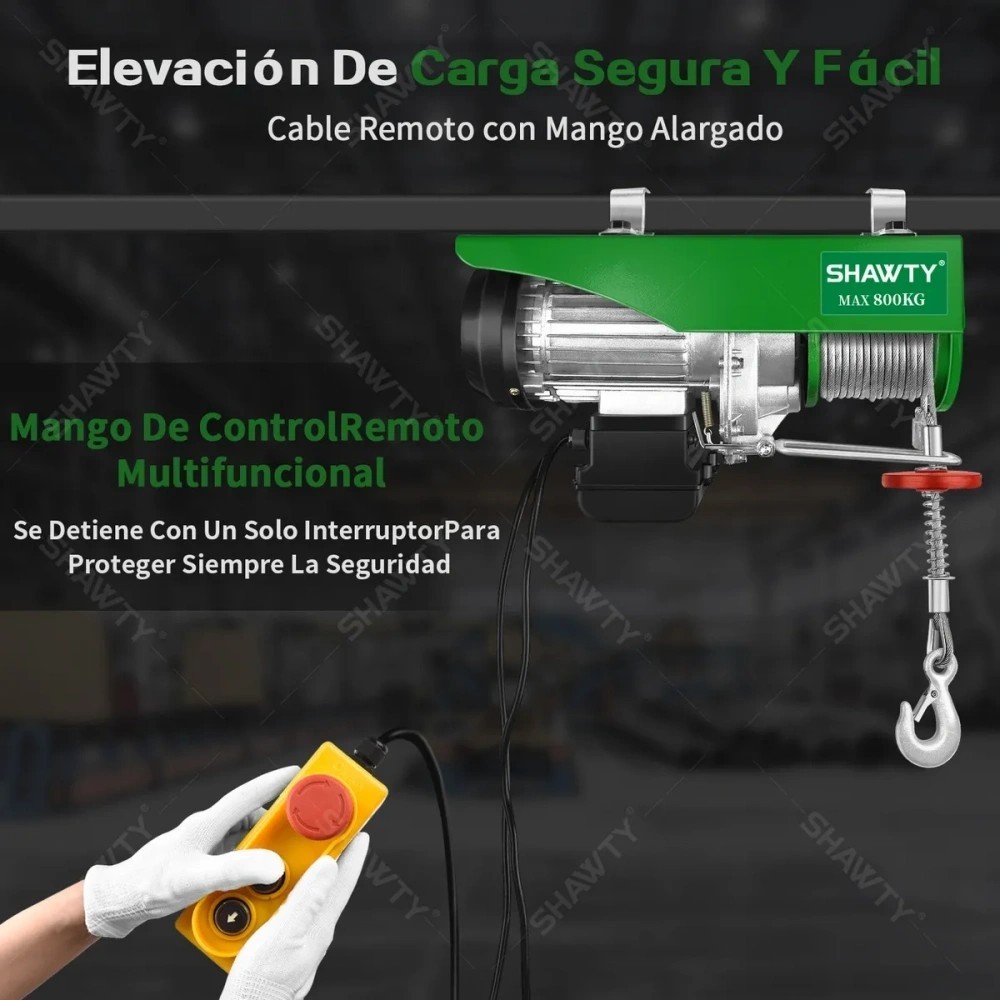

3M Wired Remote Control

Equipped with a connected remote control, it facilitates remote operation of the electric hoist, featuring a robust design suitable for harsh environments.

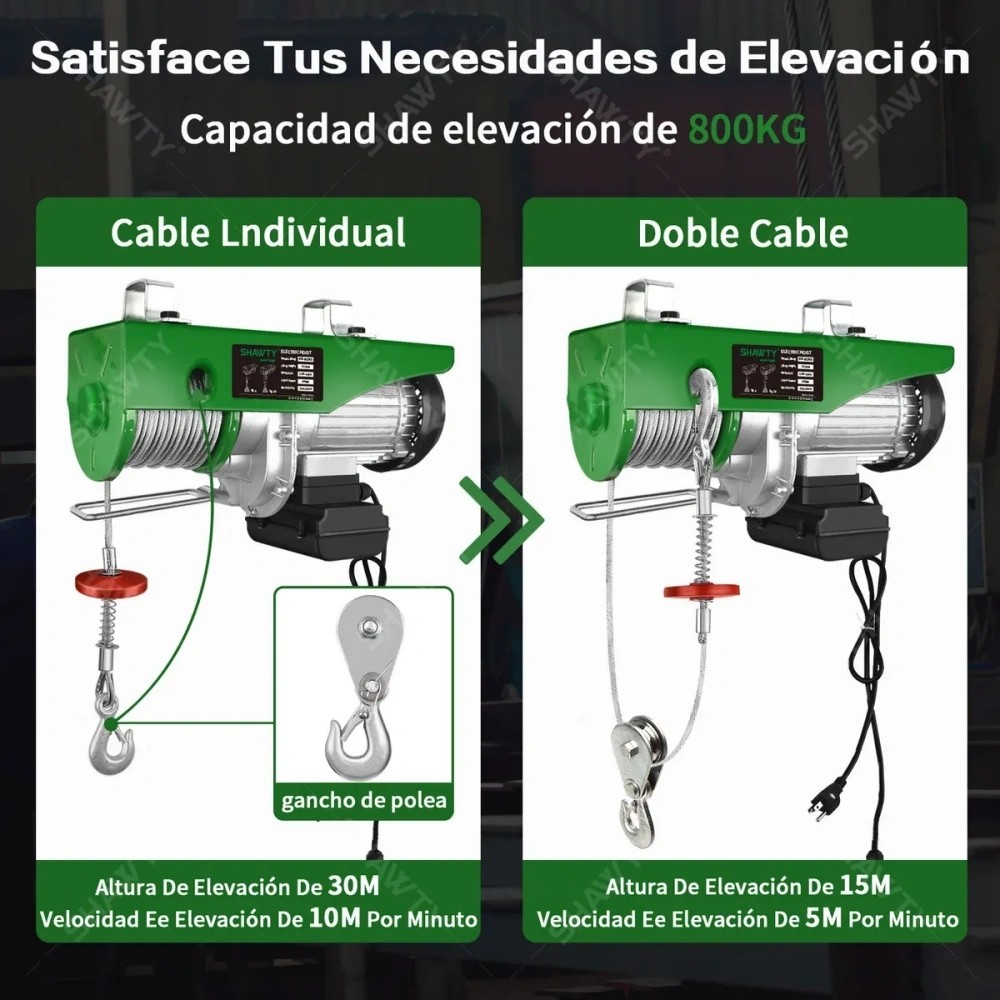

Single/Double Cable Mode, 800kg Maximum Lifting Capacity

It offers two lifting modes: with a single cable, it lifts up to 400 kg at 8-10 m/min to a height of 30 meters, and with a double cable, it lifts up to 800 kg at 4-5 m/min to a height of 15 meters.

Powerful, Safe, and Reliable

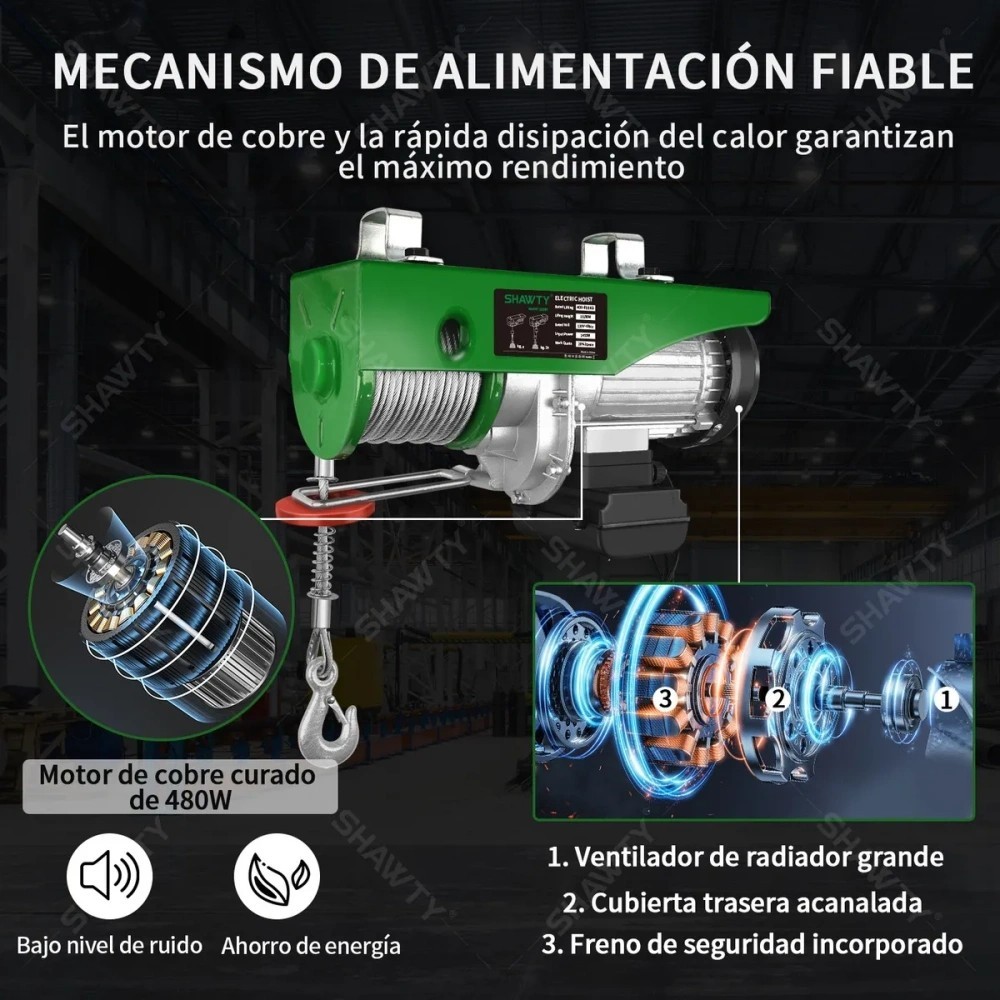

It features a high-power motor and overheat protection. The aluminum alloy housing and 30m long steel alloy wire, along with heavy-duty sliding gears, ensure stable and long-lasting operation.

Simple operation with emergency stop limit switch. Includes a metal mounting ring for easy installation and an automatic braking function with a limit switch and red plug, automatically stopping the motor when maximum capacity is reached to prevent overloading.

Wide range of applications. Ideal for lifting regular or irregular items in automotive manufacturing, construction, logistics, and warehousing.

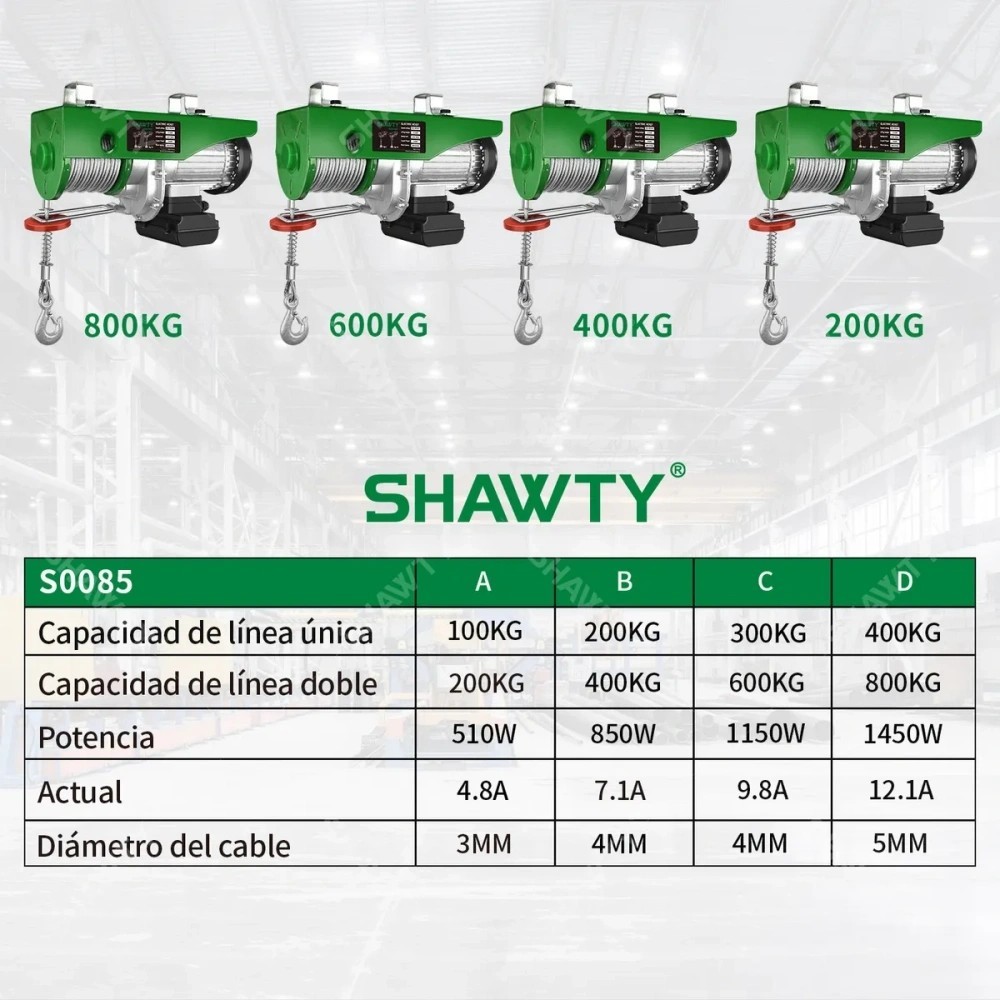

Specification

Standard Lifting Height: Single Line 30m, Double Line 15m

Lifting Speed: Single Line 8-10m/min, Double Line 4-5m/min

Load Capacity: 400kg for single line, 800kg for double lines

Rated Voltage: 110V

Power: 1450W

Frequency: 60Hz

Duty Cycle: 20%/10min

Wire Diameter: 5mm

Crane Weight: 18.4kg

Dimensions: 42.6x15.7x25.3cm

Package Contents:

1*Main Body of Electric Hoist

1*Double Line Hook

1*User Manual

Precautions:

Be sure to read the user manual before using this product. Before use, ensure the hoist is securely attached to a stable support bar with two locking rings and all bolts tightened.

Always wear safety equipment such as a helmet and gloves when operating the electric hoist.

Seller's warranty: 12 months
